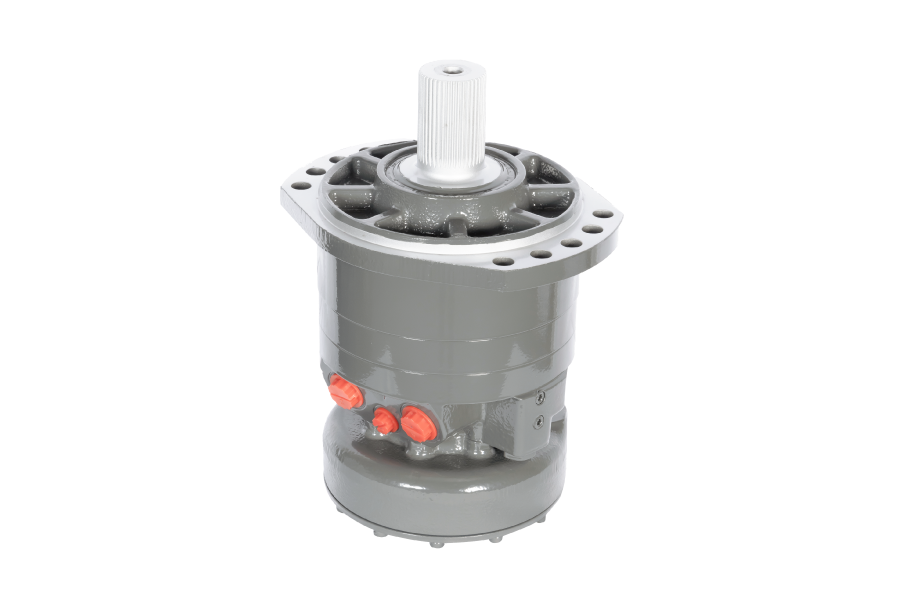

HRP03 Series Radial Piston Hydraulic Motor

Series of pictures

The utility model relates to a low-speed and high-torque hydraulic motor with multi-action internal curves and radial plunger, which adopts end-face flow distribution and can be equipped with various functional modules.

Displacement: 225/255/325/365/400cc/rev
Max.differential pressure: 400~450 bar

Configuration model/order number

****

Copy to the clipboard

ADD TO CART Catalog download Obtain 3D/2D drawings Export the configured parameters

Open all | Close all

Series advantages

Using tapered roller bearing structure, can support larger axial and radial load.
Advanced disc valve structure,strong automatic compensation ability after wear, to ensure high volumetric efficiency, long life, efficient and stable work.
Various function modules can be selected, such as flushing valve, brake, variable speed valve, speed sensor, etc. to meet the needs of users in various fields.

Technical specifications

Series				HRP03
Motor performance
Displacement			cm3/rev.	225	255	325	365	400
Max.torque			N·m	1611	1826	2069	2323	2546
Min.stable speed			rpm	5
Max.speed	Displacement		rpm	475	420	330	295	270
	Variable displacement		rpm	620	550	430	385	350
Pressure	Max.differential pressure		bar	450		400
Max.power			kW	18		22
Weight	Single speed	With brake	kg	35.202
		Without brake	kg	25.6
	Two speed	With brake	kg	39.9
		Without brake	kg	30.281
Brake
Static braking torque			N·m	2200
Release pressure			bar	15 ～ 30
Maximum pressure at brake port Z			bar	30
Oil volume to operate brake			cm3	23

Application industry

Sugarcane Machine
